Mobile loading ramp enables loading from ground level to a vehicle, ideal for efficient forklift use in warehouses.
Highlights of MALCOSTA mobile ramp:
1. Suitable for loading/unloading vehicles, wagons and containers of various heights.
2. Non-slip coating on the working surface.
3. Side rails provide additional safety during use.
4. Suitable for most forklifts, including double-wheel models.
5. Designed for intensive, long-term use in difficult conditions.
6. More affordable than similar products — without compromising quality.
See more photos in the Gallery
Technical specifications
| Type of ramp | Mobile ramp |
| Loading capacity | 5000 / 7000 / 9000 kg |
| Total length (A+B+C+D) | 8000 mm |
| Length of the horizontal part (B) | 1200 mm |
| Length of the inclined part (A+C) | 6500 mm |
| Width of the carriageway (F) | 2000 mm |
| Minimum ramp height (H) | 950 mm |
| Maximum ramp height (J) | 1350 mm |
| Length of the connecting lip (D) | 300 mm |
| Entry bridges length (C) | 500 mm |
| Entry bridges width (K) | 1000 mm |
| Safety railings height | 160 mm |
| Riding surface | Steel grating |
| Entry bridges surface | Corrugated steel sheet |
| Number of wheels | 4 pcs |
| Transport device | Yes (side tow pole) |
| Warranty | 12 months |

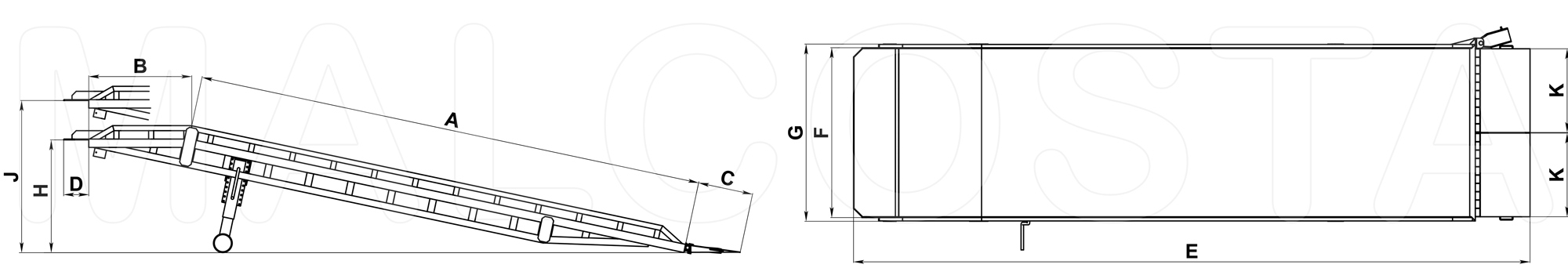

Dimensions of mobile ramp
| Model | Load capacity, kg | Size, mm | |||||||||||
| A | B | C | D | E | F | G | H | J | K | ||||
| MC-MR-05 | 5000 | 6000 | 1200 | 500 | 300 | 8000 | 2000 | 2130 | 950 | 1350 | 1000 | ||
| MC-MR-07 | 7000 | 6000 | 1200 | 500 | 300 | 8000 | 2000 | 2150 | 950 | 1350 | 1000 | ||
| MC-MR-09 | 9000 | 6000 | 1200 | 500 | 300 | 8000 | 2000 | 2170 | 950 | 1350 | 1000 | ||
Ramp operating principle
MALCOSTA loading ramp
The MALCOSTA mobile loading ramp ensures stable and smooth access to the truck body. Suitable for use both indoors and outdoors.
The mobile design does not require fastening to the foundation, is easily moved with a forklift and can be quickly put into operation. It is a practical solution for companies that value efficiency, flexibility and effectiveness in their logistics processes.
The MALCOSTA loading ramp combines convenience, safety and reliability. The purchase of a mobile ramp is an ideal solution for efficient logistics at your enterprise.
